Product Dimensions 13.5"h x 34.38"w x 20.5"d

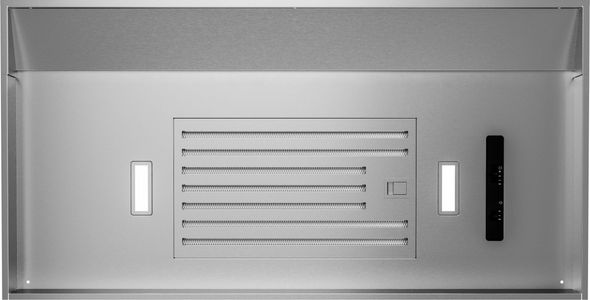

The Vortex insert leads the way as the industry’s first adjustable-depth insert. Vortex is designed to extend 3 inches to accommodate custom hood depths from 17-1/2 to 20-1/2 inches. Add to this its quiet, 390-CFM blower, dual-level LumiLight LED lighting, and optional recirculating kit – Vortex stands tall among the rest.Read More
Dual-level LED lighting
Hybrid baffle filter
Mechanical slide controls
Adjustable depth
Vertical and horizontal ducting
General Specs | |
Width (in.) | 34.38 |
Height (in.) | 13.5 |
Duct Size (in.) | 6" Round |
Depth (in.) | 20.5 |
Collection | Core Collection |
Color | Stainless Steel |
Manufacturer Warranty | 1 Year Labor/3 Year Parts |
Color Finish Name | Stainless Steel |
Range Hood Type | Insert |
Appliance Fit Width (in.) | 36 |
Maximum CFM | 390 |
Bulb Type | LED |
Grease Filter Type | Baffle |
Sones Rating | 1.4 - 5 |
Fan Speed Options | 3 |
Height Above Cooktop | 24 - 36 |
Height Above Cooktop Centimeter | 60.96 - 91.44 |
Voltage | 120 |
Amp | 4 |
Frequency | 60 |
Range Hood Features | Ductless Capable |
Noise Level (Sones) | Standard - (High) |
Ventilation Type | Ducted |
