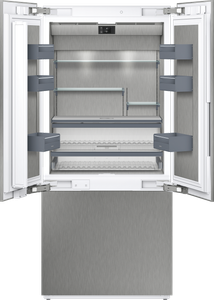

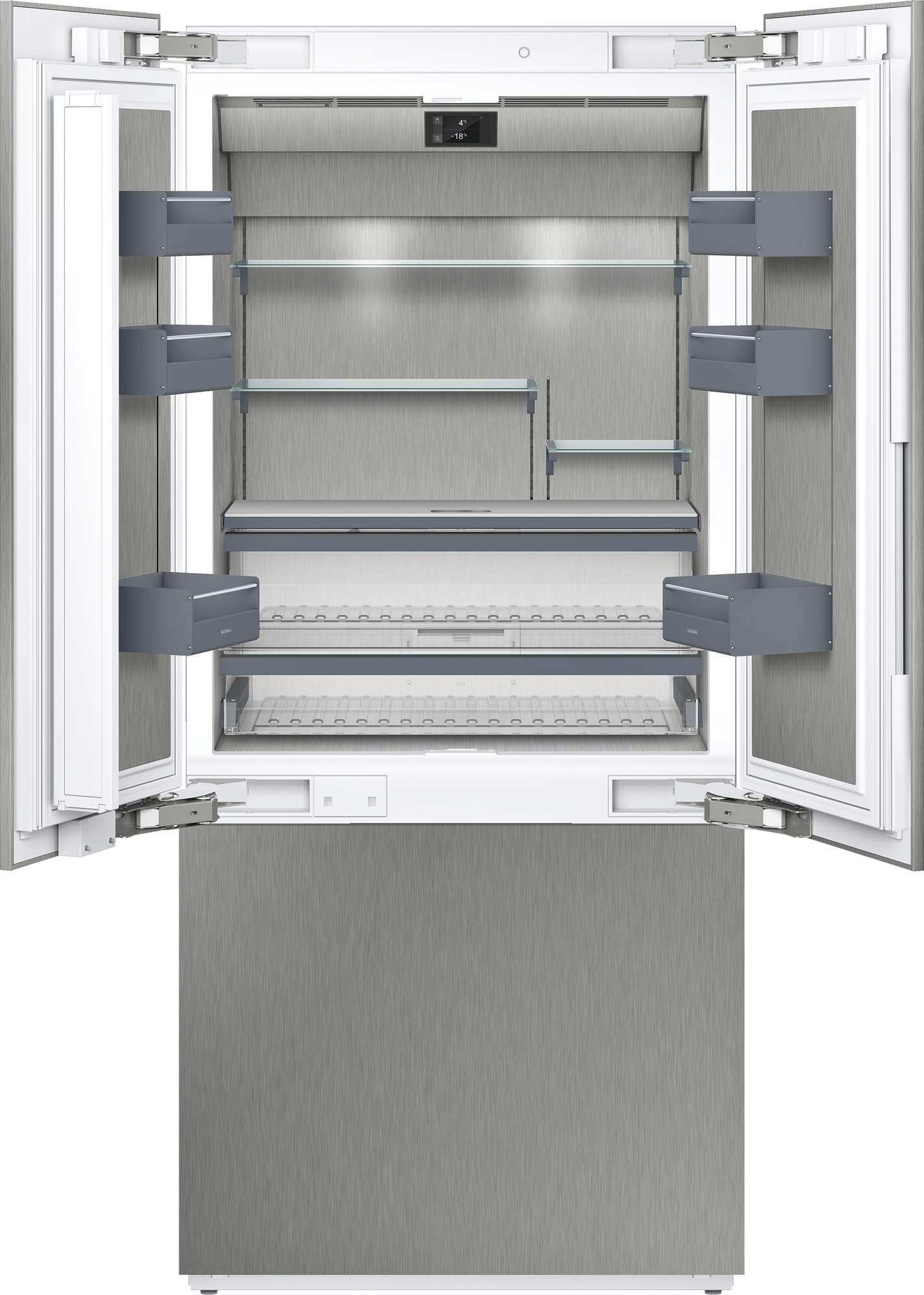

Gaggenau 400 Series 19.4 Cu. Ft. Stainless Steel Bottom Freezer Refrigerator


Model #:

RY492704

On Display

At a Glance

Product Dimensions 79.88"h x 35.75"w x 23.94"d

When sabbath mode is active, the appliance can only be opened using a handle. There are 3 safety glass shelves, white glass, 2 of which are individually adjustable in height.Read More

Call for Best Price

What We Offer

Services

View Options

None Selected
Installation Available: Call for a Quote

Get to know this product.

Product Overview

Product Overview

Operation

TFT touch display operation

Clear text display

Technical Features

Dynamic cold air distribution

Automatic defrosting with defrost water evaporation

Activated charcoal air filter

Open-door and malfunction alarm

Home network integration for digital services (Home Connect) wireless via WiFi

Cooling

No-Frost technology with fast cooling

Temperature adjustable from 35°F to 46°F (+2°C to +8°C)

3 safety glass shelves, white glass, 2 of which are individually adjustable in height

1 asymmetrically split safety glass shelf, with manual height adjustment

4 brilliant LED light spots with warm white, glare-free light within cooling area and drawers

Flat door rail system with fully flexible positioning of door racks. 6 height-adjustable door racks, 2 of which are extra deep

Fresh Cooling Close to 32°F (0°C)

1 fully extendable fresh cooling drawer close to 32°F (0°C) with transparent front, illuminated

Temperature can be adjusted manually. Ideal for meat, fish and poultry

Fresh Cooling

1 fully extendable fresh cooling drawer with transparent front, illuminated

Humidity can be adjusted manually. Ideal for fruit and vegetables

Freezing

No-frost technology with fast freezing at -22°F (-30°C)

Temperature adjustable from 3°F to -11°F (-16°C to -24°C)

Freezing capacity 35.3 lbs. (16 kg)/24 h

Storage time after a malfunction 17 h. 2 fully extendable inside drawers

Interior lighting with 2 LED light spots, warm white light

Ice Maker

Integrated in the freezer compartment, with fixed inlet water connection

Particle filter for water inlet, integrated in ventilation grill area

Can be switched off

Ice cube production approx. 2.9 lbs. (1.3 kg)/24 h

Removable ice storage container with approx. 6.6 lbs. (3 kg) capacity

Useful Documents
Specifications

General Specs

Width (in.)35.75
Depth (in.)23.94
Height (in.)79.88
Freezer Capacity (cu. ft.)5.5
Handle TypeRecessed
Total Capacity (cu. ft.)19.4
Refrigerator Capacity (cu. ft.)13.9
ColorStainless Steel
Appliance Fit Width (in.)36
Ice MakerYes
Door Swing OptionReversible Hinge
Depth TypeCounter Depth
Color Finish NameStainless Steel
Ice Storage Capacity (lbs.)6.6
Collection400 Series
Ice/Water DispenserNo
Wifi ConnectivityYes
Defrost SystemAutomatic
Number of Doors2
ENERGY STAR CertifiedYes
Commercial Use ApprovedNo
Installation TypeBuilt-In
ADA CompliantNo
Smart CompatibleYes
Voltage120
Frequency60
Amp15
Type of RefrigeratorFrench Door Refrigerator
Refrigeration General FeaturesDoor Alarm, Freezer Light, Wi-Fi Capable
Overall Height (in.)79.88

Overview

Ice MakerIntegrated
Noise Level42 dBA
Included Accessories1 egg holder with lid; 1 ice cube scoop; 1 supply hose, 51" (1.3 m) with ⁷/₁₆" – 24 male connector
DisplayTFT touch
InteriorStainless steel
Safety Glass Shelves3
Drawers2 fully extendable
Lighting4 brilliant LED
Door RacksSolid anthracite aluminum
Ice Cube ProductionApprox. 2.9 lbs. (1.3 kg)/24 h
Water Pressure29 to 116 psi
Removable Ice Storage ContainerApprox. 6.6 lbs. (3 kg) capacity
Connecting Cable118" (3m) detachable
Supply Hose51" (1.3 m) with ⁷⁄₁₆"– 24 male connector
